| Nguồn gốc: | Quảng Đông, Trung Quốc |
|---|---|
| Hàng hiệu: | UNIMETRO |
| Chứng nhận: | CE,ISO |
| Số mô hình: | dòng HP |
| Số lượng đặt hàng tối thiểu: | 1 bộ |
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vỏ gỗ + gói chân không |
| Thời gian giao hàng: | 15 ~ 20 ngày |
| Điều khoản thanh toán: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Khả năng cung cấp: | 5 bộ mỗi tháng |

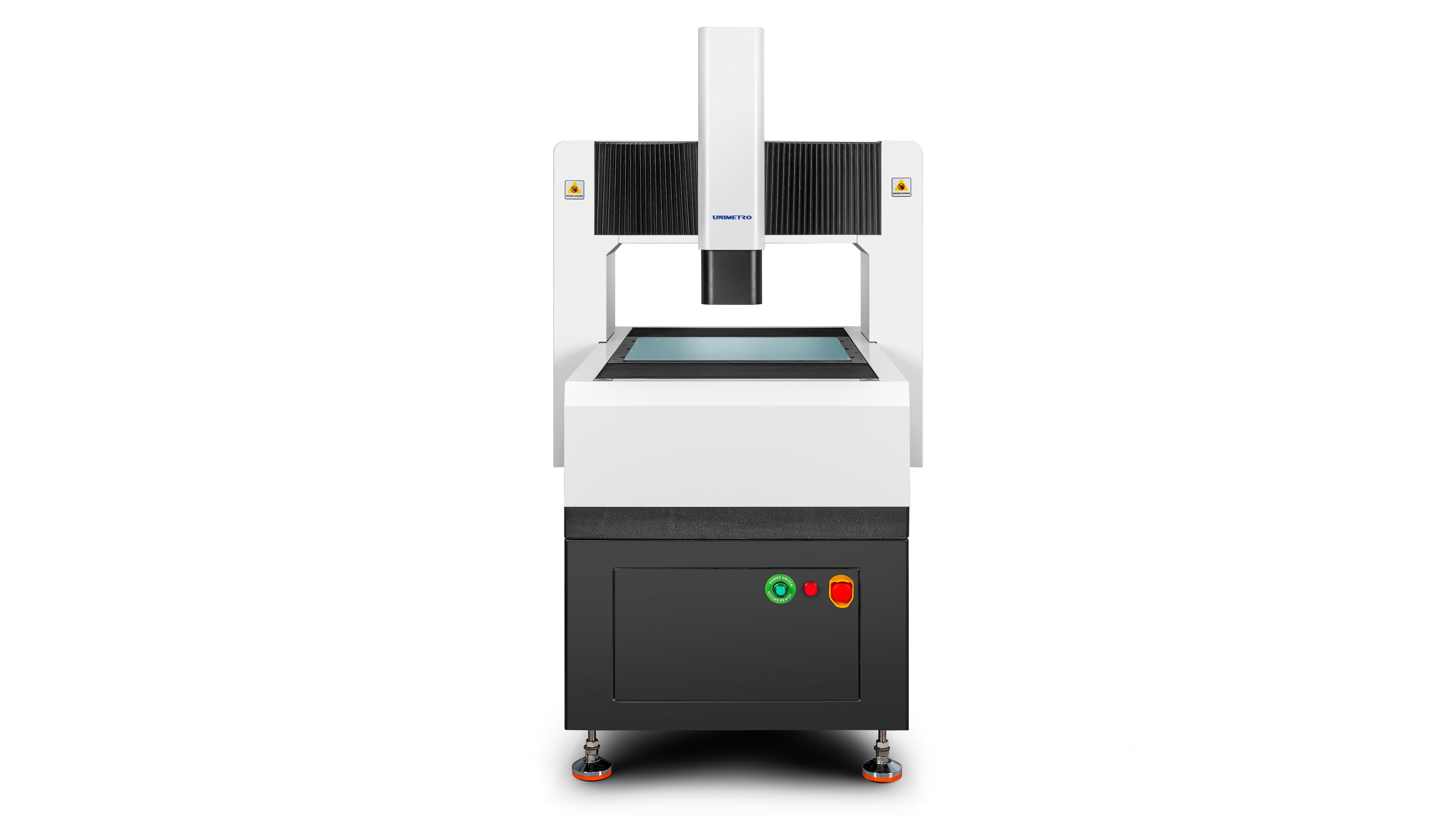

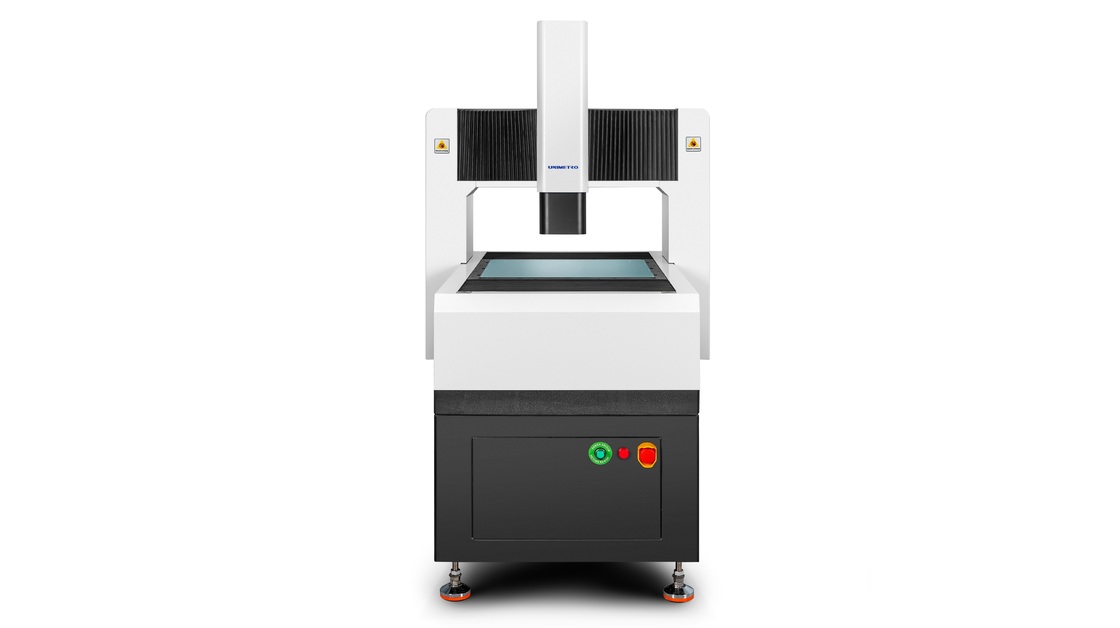

| Người mẫu: | Dòng HE | Tên sản phẩm: | Máy đo ảnh hoàn toàn tự động (loại giàn cố định) - HP442 |
|---|---|---|---|
| Độ lặp lại: | 1,5um | Sự chính xác: | 2,5+L/200UM |
| Độ phân giải quy mô tuyến tính: | 0.5µm (0.1µm tùy chọn) | Chế độ đo lường: | Hoàn toàn tự động |
| ủng hộ: | OEM,ODM,Tùy chỉnh | Cảnh quan ứng dụng: | Phòng thí nghiệm/Công nghiệp |
| Bảo hành: | 12 tháng | Trọng lượng (kg): | 560 |
| Làm nổi bật: | fully automatic vision measurement machine,fixed gantry image measuring instrument,HP442 vision measurement machine |
||
PRODUCT OVERVIEW
Parameters
| Model |
HP 442 |
HP662 |
HP872 |
|
Dimensions (mm) (X x Y x Z) |
920*1200*1600 |
1120*1400*1600 |
1320*1600*1600 |
|
Measuring range (mm) (X x Y x Z) |
400*400*200 |
600*600*200 |
800*700*200 |
|
Accuracy (um) |
1.6 +L/200 |
1.6 +L/200 |
1.6 +L/200 |
|
Repeatability (um) |
1.5 |
1.5 |
1.5 |
|
Weight(kg) |
560 |
860 |
1600 |
|
Resolution |
0.5μm(0.1um for option) |
Industrial-grade color CCD camera | |
|
Lens |
1x-10x (Variable magnification) |
||
|
Magnification
|
20X - 200X (The magnification varies depending on the model of the selected camera; the actual magnification is subject to the measured data.) | ||
|
Video Magnification |
18~195X (According to the different models of the selected camera, its magnification will change; the actual magnification is subject to the measured data) |
||
|
Work Distance |
85mm | ||
|

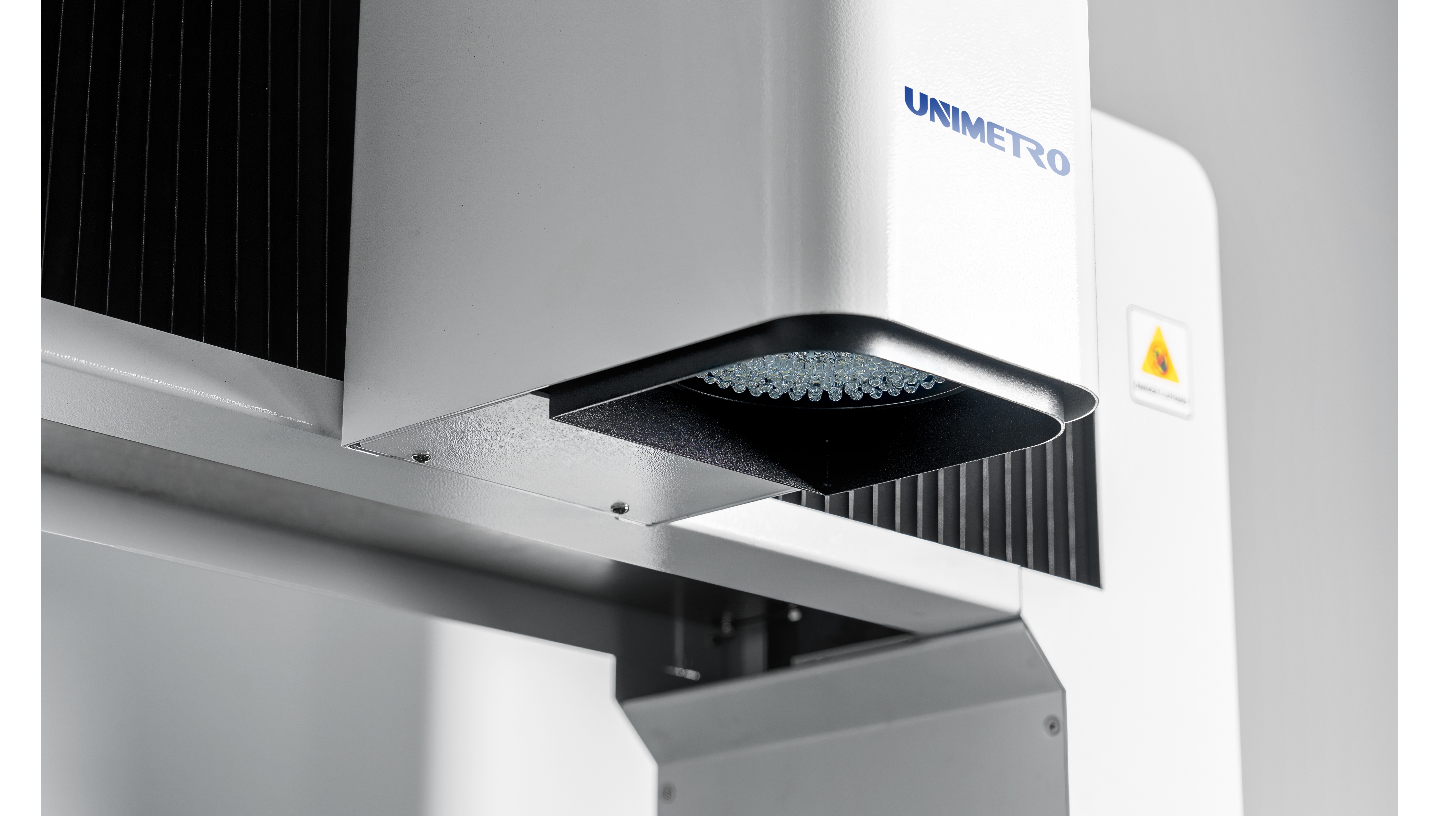

Illumination |
Programmable surface light, LED bottom parallel light (optional: coaxial light) |
||

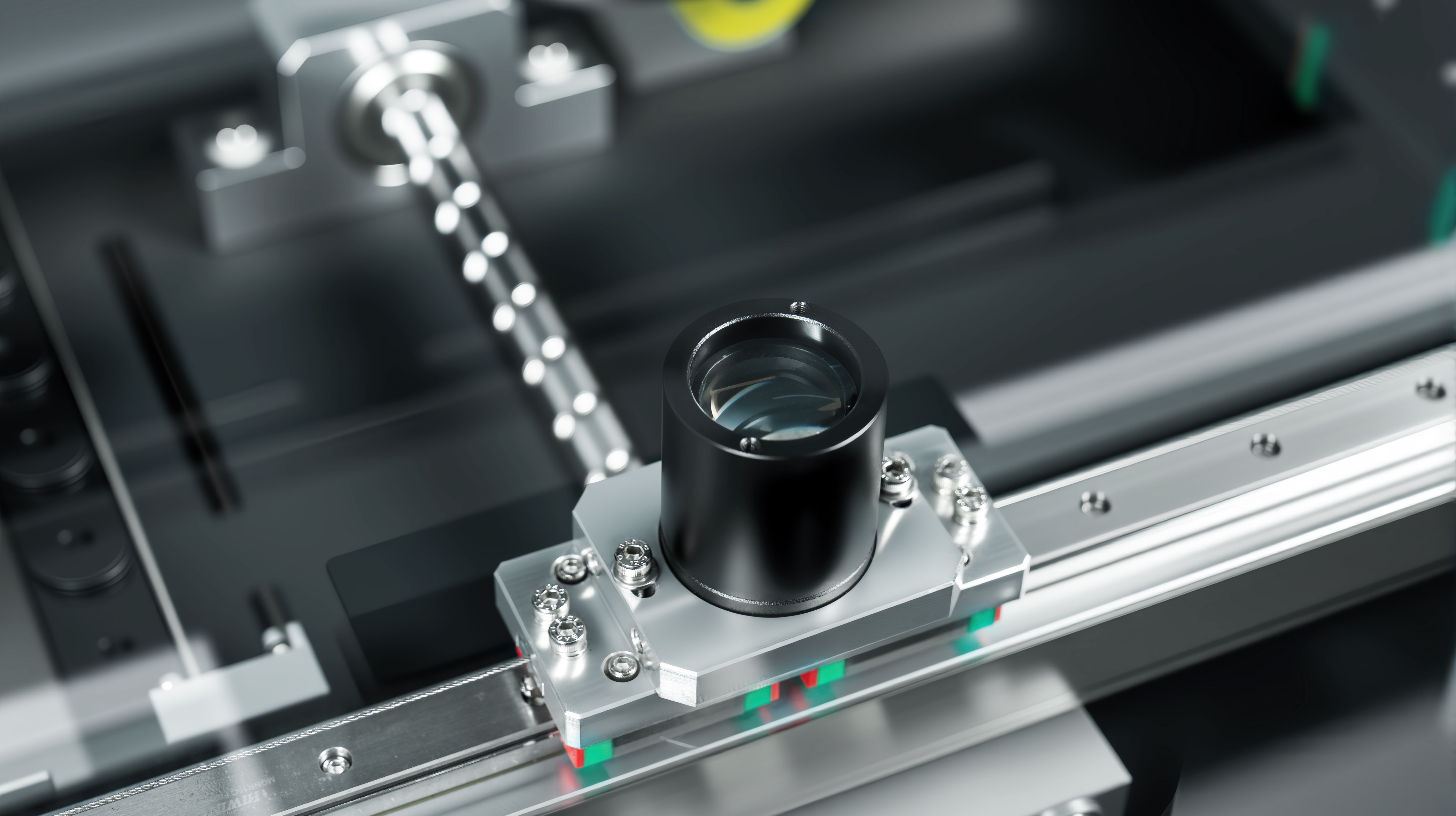

| Drive system | CNC control, linear motor drive; Handle control, mouse/keyboard control | ||
|
Linear scale resolution (um)
|
0.1um | ||
Application
Plastic parts
Metal parts
Stamping mold
Rubber part
Electronic part
PCBA part
Gear part
...
Features

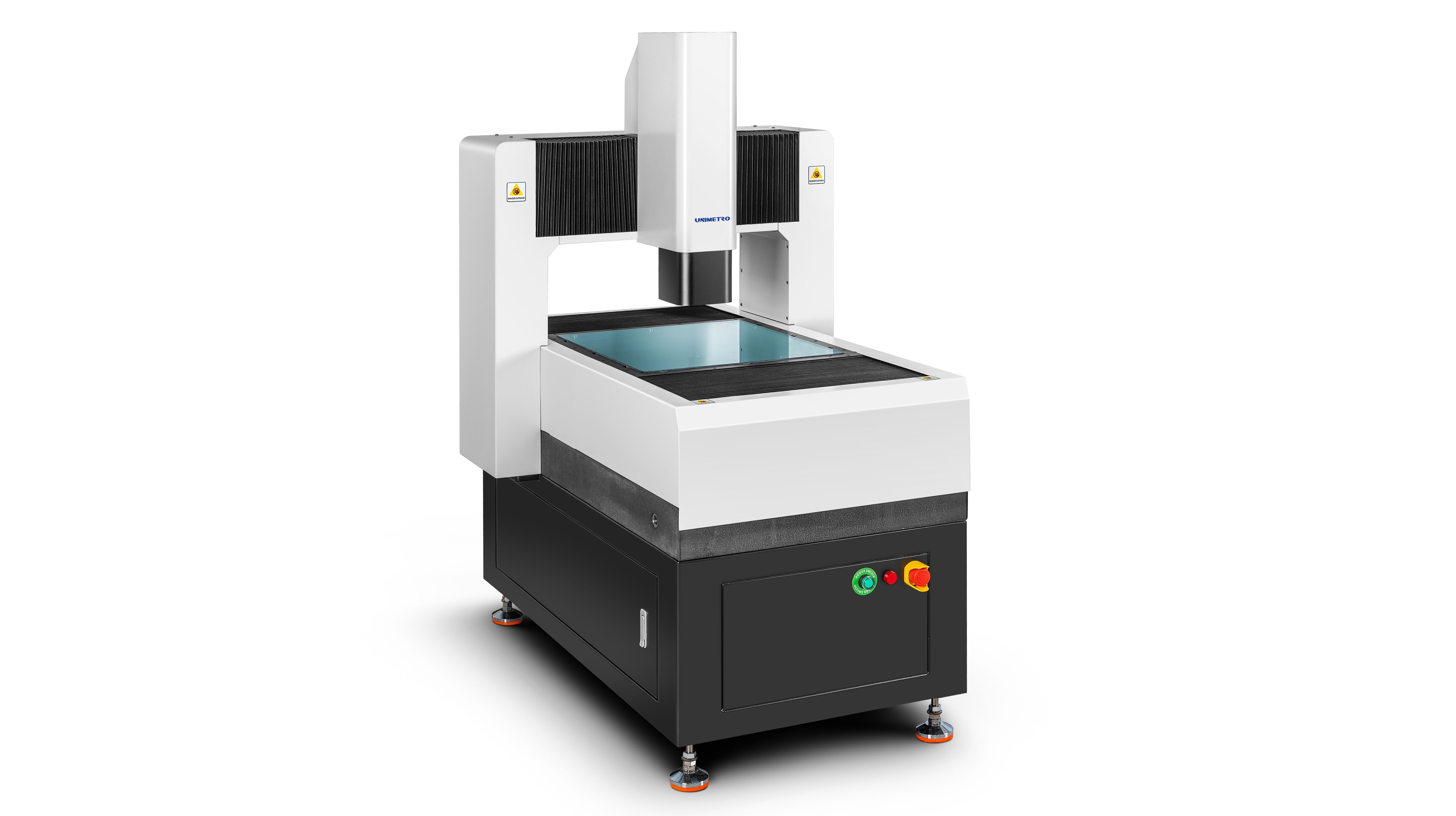

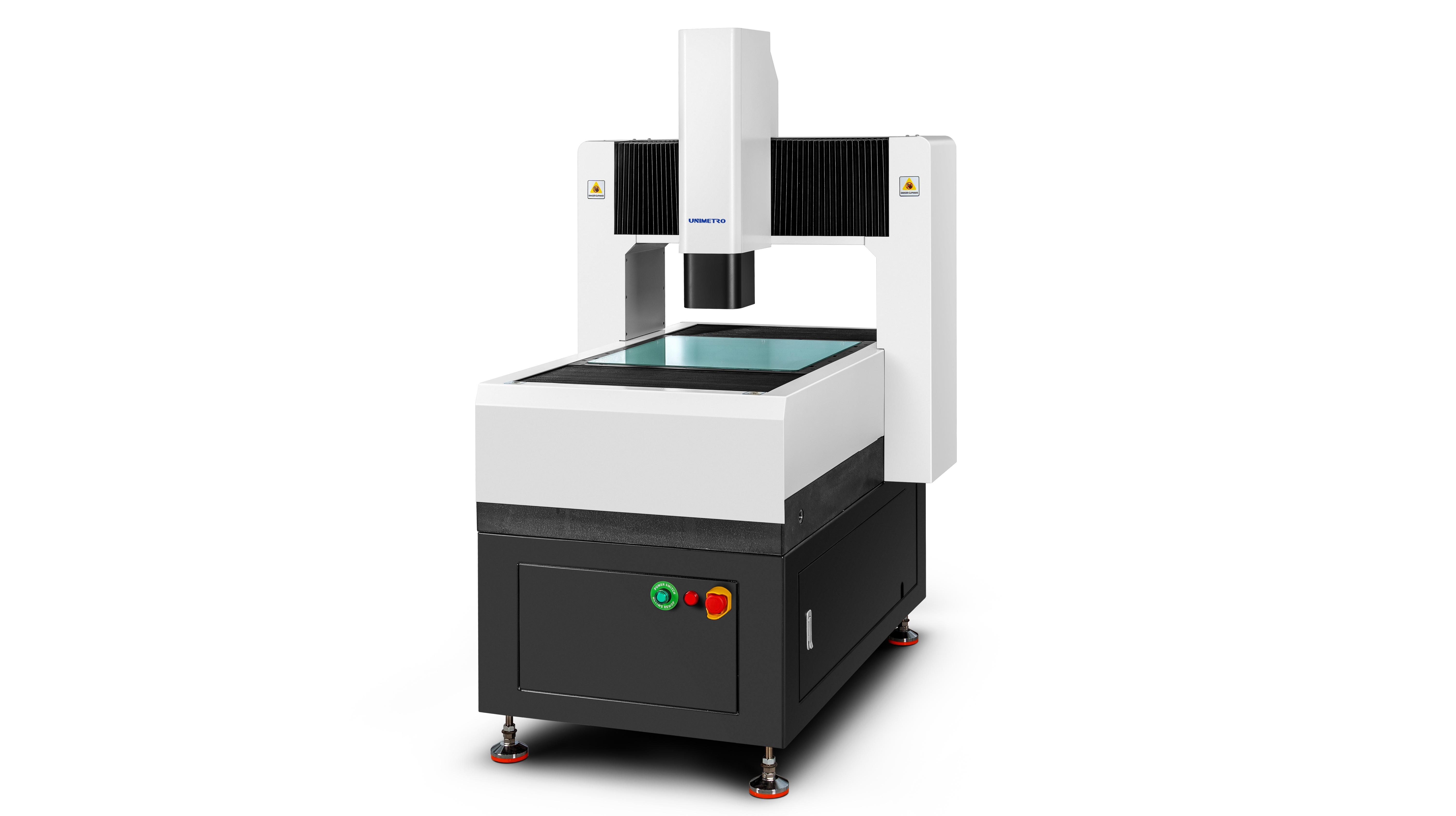

1) The whole closed frame moving bridge structure is adopted, the measuring workpiece is fixed, the bearing capacity is large, and the motion performance is good.
2) Introduce finite element analysis technology into mechanical design to ensure high rigidity and high precision mechanical structure.
3) Grade 000 granite base, high strength, corrosion resistance and good stability.
4) Aluminum oxide surface treatment worktable, fast and flexible action control, durable and beautiful.
